Description

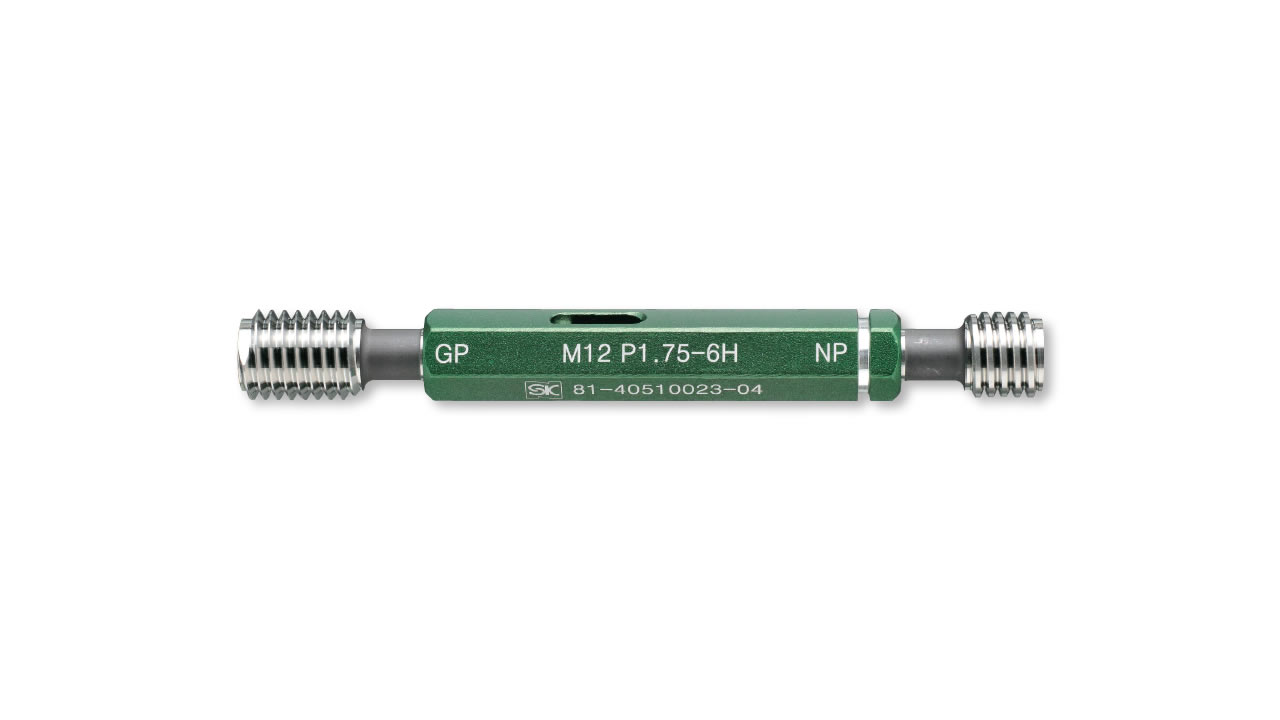

Inspection of Threaded Hole
For each screw size to be measured the corresponding gauge has standard dimensions. The gauge is used to perform GO/NO GO test based on the prescribed minimum and maximum dimensions for each screw grade.
MATERIAL
- Gauge part : Alloy tool steel
- Handle part : Aluminum
Feature
Standard GPIP II. Measure screw thread inspection to check upper and lower limit dimensional precision
